Brand New Smev Dometic 9722 cooker sink combination unit with fitting kit and template on the box. LEFT HAND SINK

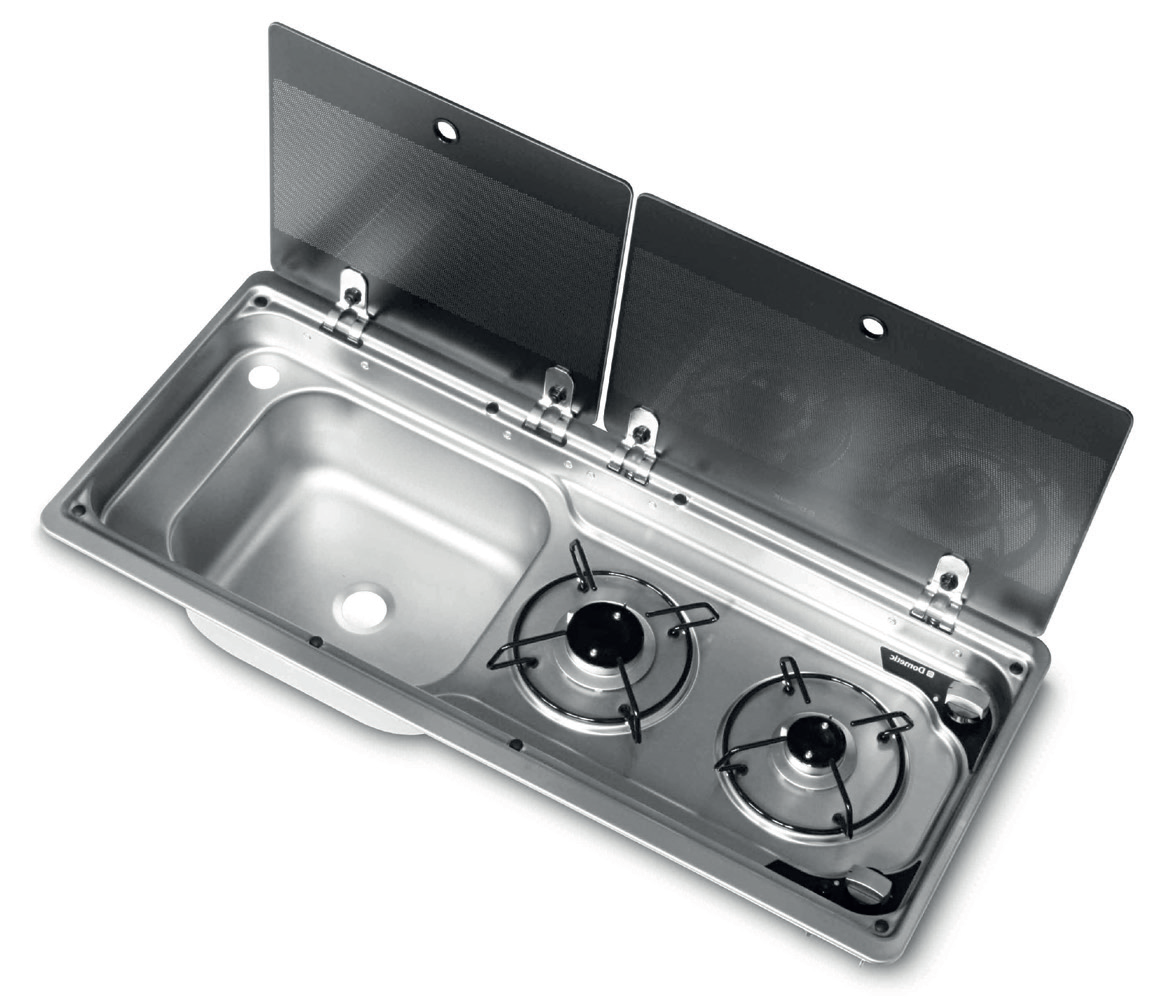

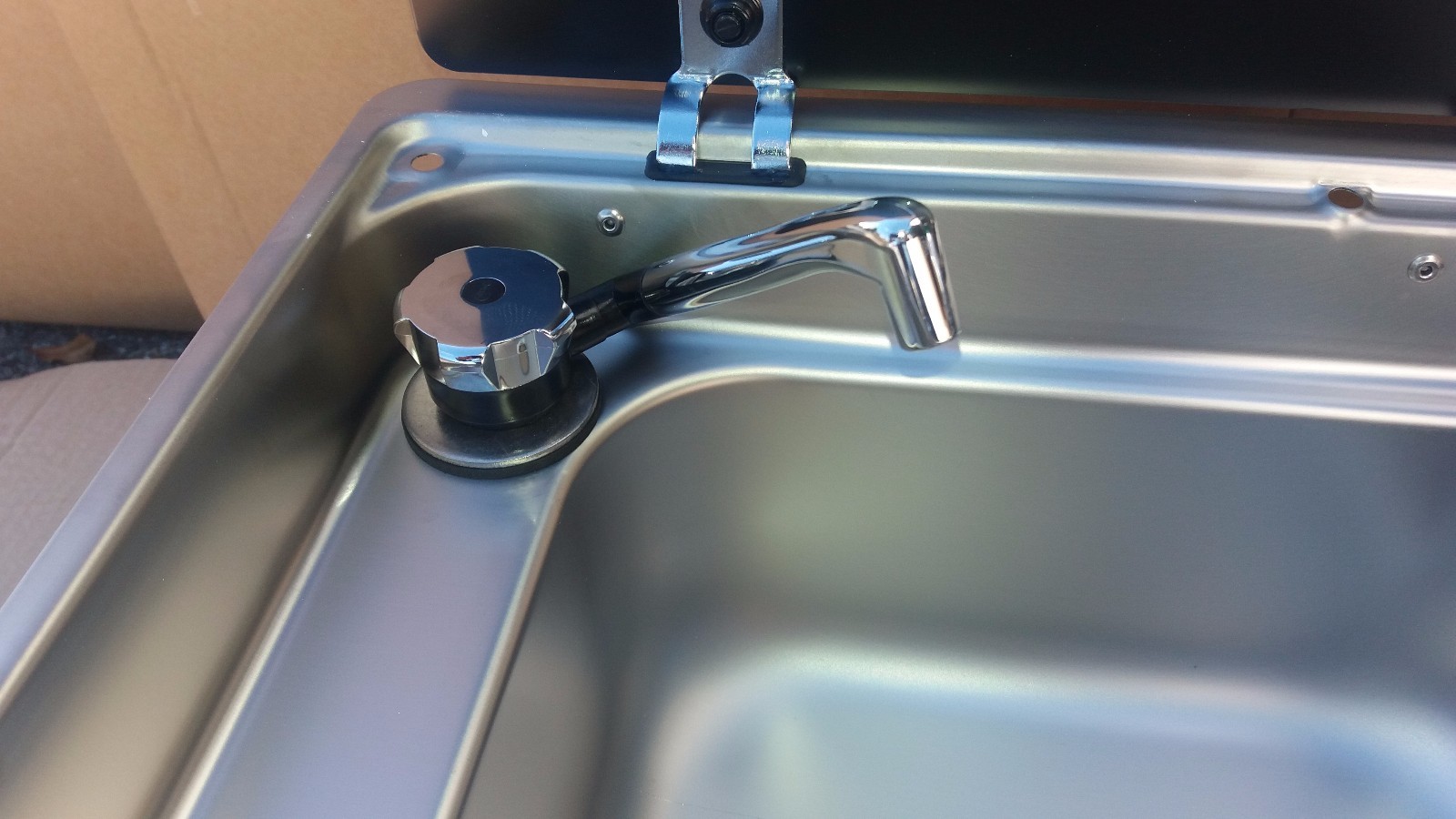

This is a compact alternative to its best selling bigger brother the Dometic 9222. It will fit into narrower units and tighter spaces making more conversions possible. It has smart looking glass lids, a 2 burner hob and sink. The glass lids can be lifted one at a time to reveal the sink or the cooker or both. There is a recommended pan diameter size limit of 220mm on the hob next to the sink and 160mm on the hob next to the knobs. The 9722 is available with the sink on the right or left hand side. Please click on ‘sellers other items’ to see all the options. The tap, if supplied, (see our different kit options) folds neatly away in the sink, under the glass lid. The cooker comes with a rubber seal for the rim, a waste fitting and plug for the sink, a fixings pack and a Dometic manual. The Dometic manual contains a technical drawing of the cut out needed to fit the sink, but to make life easier for you we have drawn a template on the outside of the box.
Dimensions of Smev 9722 (W x H x D): 760 x 179 x 325 mm
Allow an additional 35mm depth under the sink for the right angle waste fitting
Dimensions of cut out for Smev 9722: 743 x 290mm (cut out isn’t central to cooker unit there is a 32mm over hang on the front and a 4mm over hang on the back)

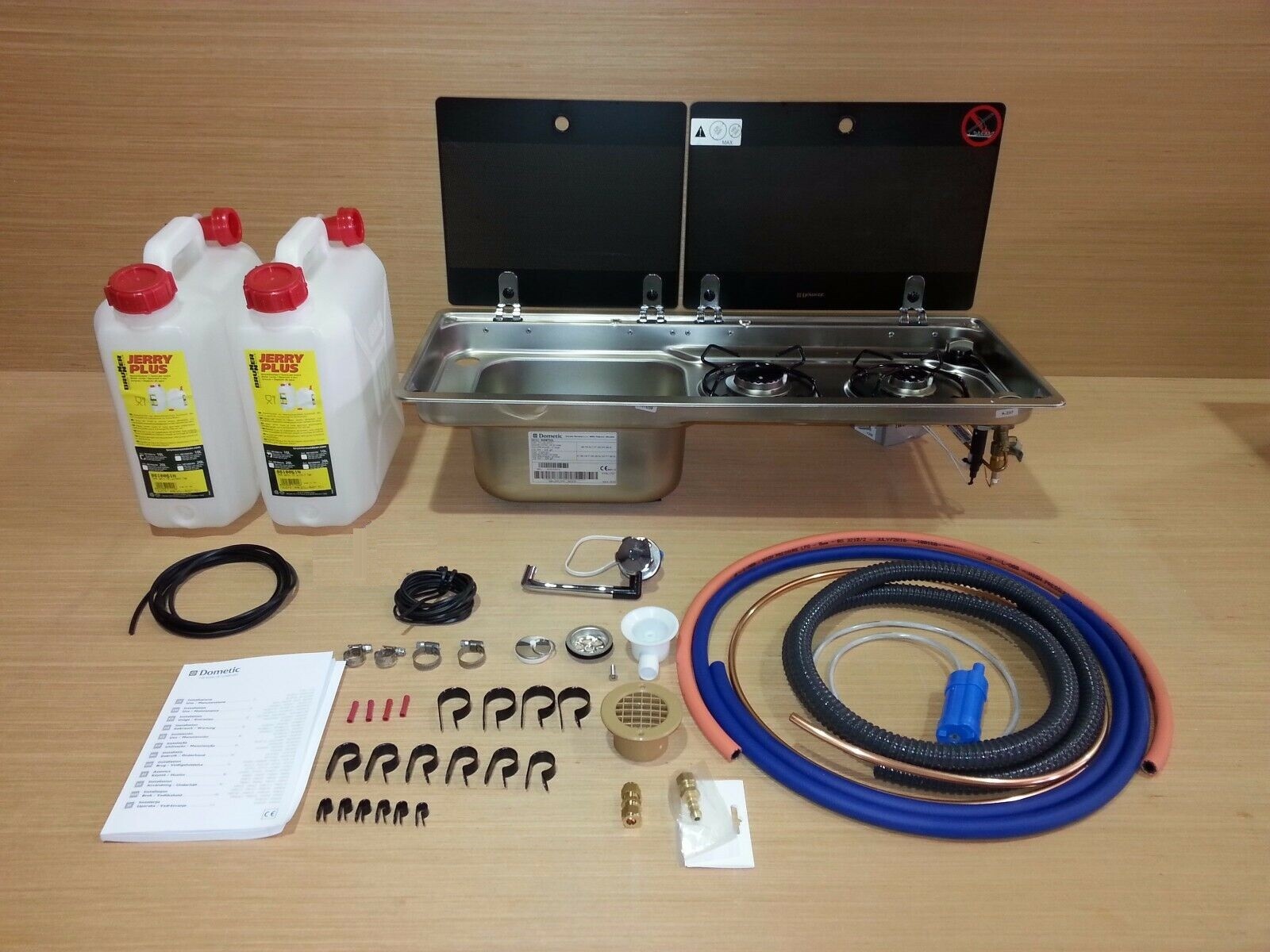

This kit contains:
- Dometic Smev 9722 combination unit with Piezo electronic ignition
- Cold tap with micro switch
- 12v submersible water pump
- 3m twin core cable
- Electric connectors
- Sink waste with seal and plug
- 2m flexi waste water pipe
- 2m flexi fresh water pipe
- 1.5m 8mm Copper Gas pipe
- Jubilee hose clips
- 1m flexi gas hose
- Gas hose clips
- Gas 8mm compression connectors
- Gas drop vent
- P-clips to secure pipes / hose
- Smev fitting kit, cutting template (on box) and user manual
- Comes with 2 x 10 Litre (h342 x w153 x d285mm) water containers
We recommend that all gas pipes and connectors are fitted / checked by a qualified gas engineer.
